Archivo: Game Boy Advance audio (cropped)

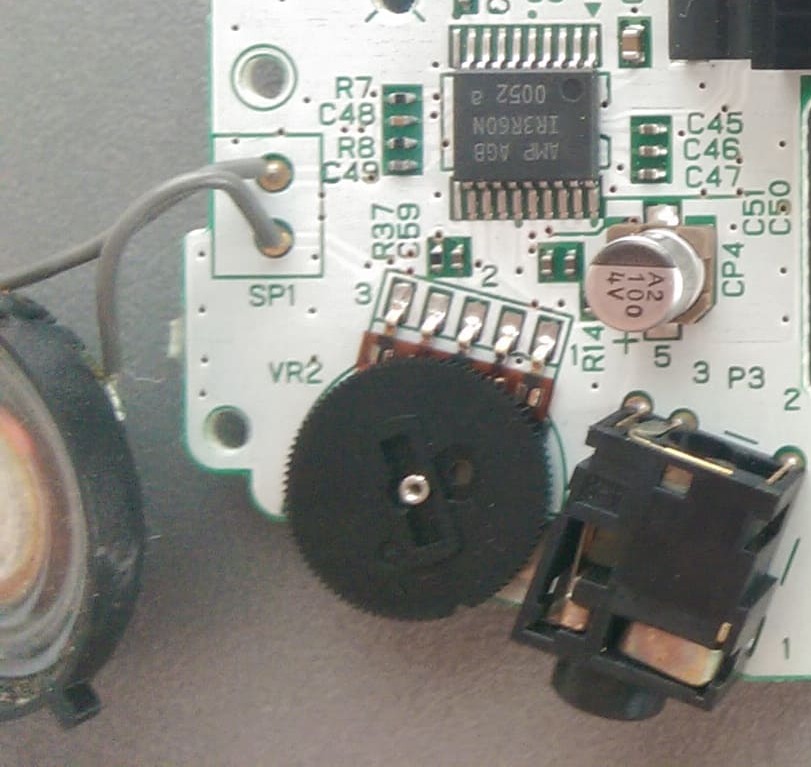

Descripción: Game Boy Advance motherboard (back) The audio part of the Gameboy Advance includes the speaker, the minijack and the amplification chip with the complementary components. AGB: AJ10005957 [gekkio] Color: Indigo Release code: AGB-JPN Assembly date: Week 6/2001 Mainboard type: AGB-CPU-01 Manufacture date: January/2001 Number pair on board: 2-1 Stamp on board: 061 1914 Circled letter(s) on board: A Parts Part Type Manufacturer Date Label U1 CPU CPU AGB Week 3/2001 CPU AGB Ⓜ © 2000 Nintendo JAPAN ARM 0103 I U2 WRAM μPD442012AGY-BB85X-MJH NEC Week 38/2000 NEC JAPAN D442012AGY-BB85X-MJH 0038K7020 U3 LCD bias generator IR3E09N Sharp Week 53/2000 AGB-REG IR3E09N 0053 C U4 ? MM1514X Mitsumi 2000 081 514X U6 Audio amplifier IR3R60N Sharp Week 52/2000 AMP AGB IR3R60N 0052 a X1 Crystal 4.194304 MHz Daishinku Week 2/2001 KDS 0102 4.194
Título: Game Boy Advance audio (cropped)
Créditos: https://gbhwdb.gekkio.fi/consoles/agb/AJ10005957.html
