Archivo: Chart of Fusion Approaches

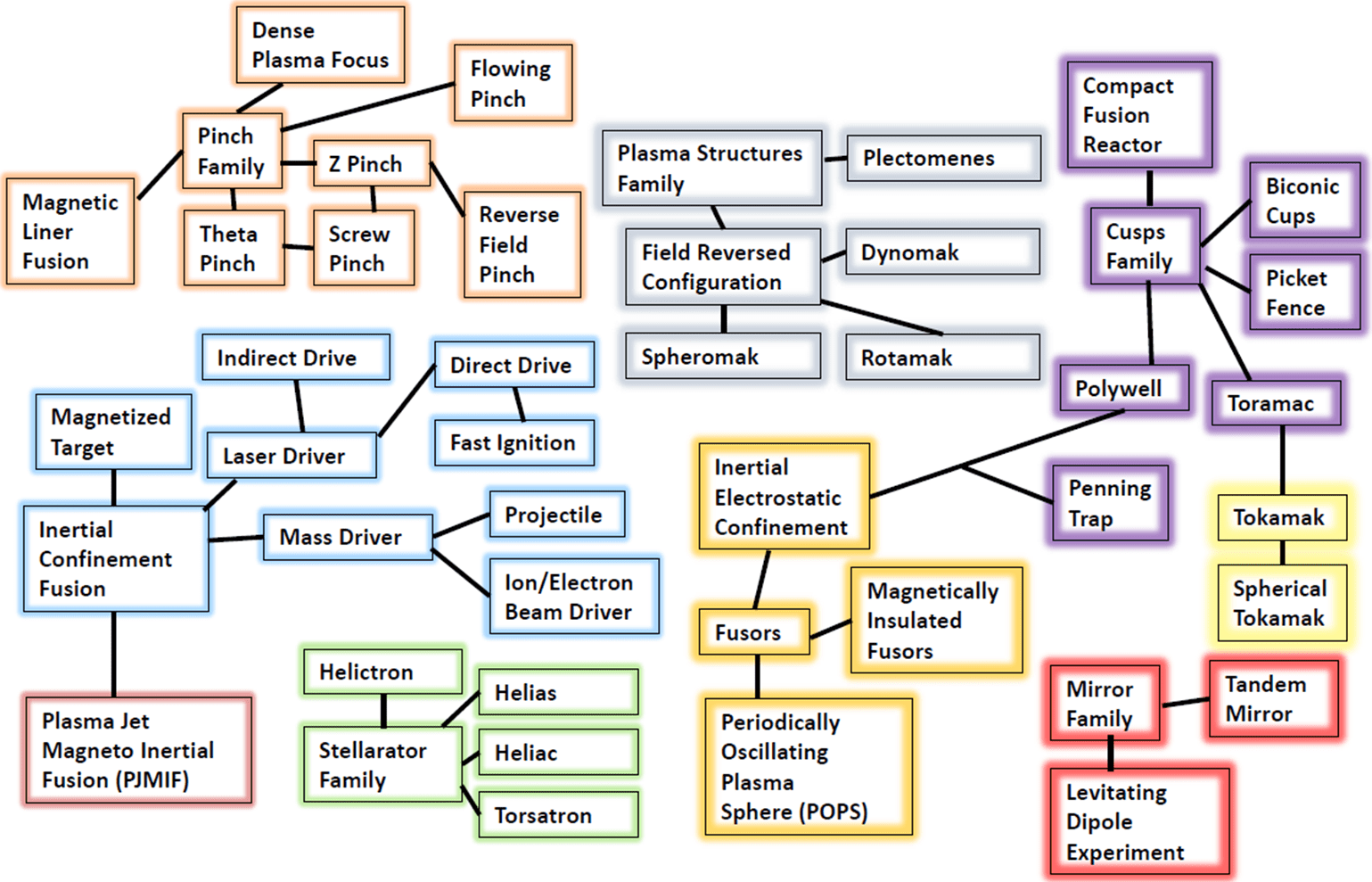

Descripción: Various authors have also put forth ways to organize all the fusion approaches that have been tested over the past 70+ years. This flow chart above groups the approaches into color coded families, these are: the Pinch Family (orange), The Mirror Family (red), Cusp Systems (violet), Tokamaks & Stellarators (Green), Plasma Structures (gray), Inertial Electrostatic Confinement (dark yellow), Inertial Confinement Fusion (ICF, blue), Plasma Jet Magneto Inertial Fusion (PJMIF, dark pink).
Título: Chart of Fusion Approaches
